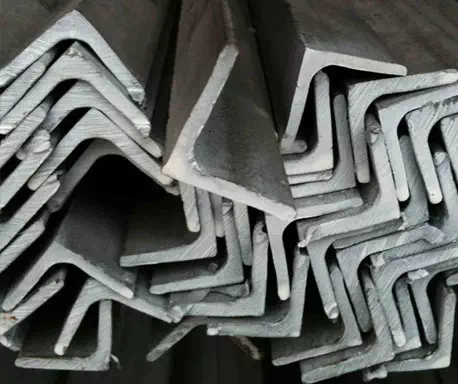

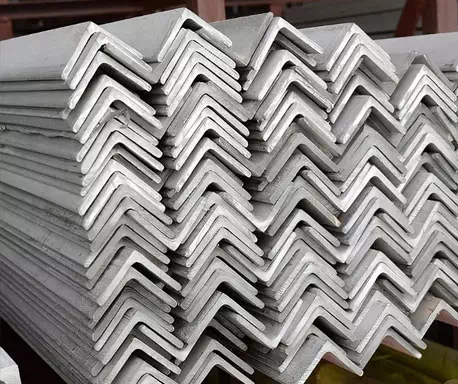

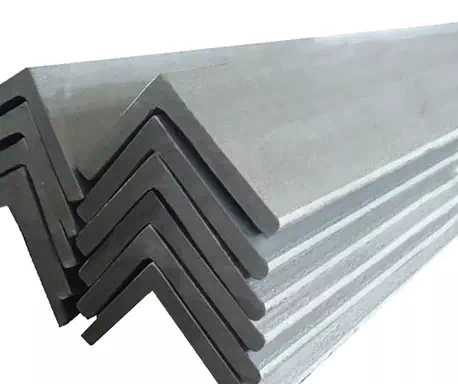

angle iron, commonly known as Angle iron, is vertical to each other on both sides of the angular strip of steel.
Angle steel can be composed of different forces according to the different needs of the structure, and can also be used as the connection between the components. It is widely used in various building structures and engineering structures, such as beam, bridge, transmission tower, lifting machinery, ships, industrial furnaces, reaction towers, container racks, cable trench supports, power piping, bus support installation, and warehouse shelves.
Angle steel is a carbon structural steel for construction. It is a section steel with simple section. It is mainly used for metal components and the frame of factory buildings. It is required to have good solderability, plastic deformation performance and certain mechanical strength in use. The raw material of Angle steel production is low carbon square billet, and the finished Angle steel is delivered in hot rolled form, normalizing or hot rolled state.
It is mainly divided into equilateral Angle steel and unequilateral Angle steel, among which the unequilateral Angle steel can be divided into two kinds: unequilateral and unequal thickness.
Product Name | Steel Angle Bar |
Thickness | 3mm-24mm |
Length | 6-12m or according to customer's special request |
Dimensions(mm) | 25 - 140mm |
Tolerance | Thickness: +/-0.02mm, Dimensions:+/-2mm |
Material grade | Q195,Q215,Q235B,Q345B,Q420 Series |
Technical | Hot rolled |
Standard | AISI,ASTM,DIN,JIS,BS,GB/T |
Delivery times | ISO,CE,SGS,BV,BIS |
Application Range | Widely used in various building structure and engineering structure, such as the beam, Bridges, transmission tower, lifting transportation machinery, ship, industrial furnace, reaction tower, container frame and warehouse. |
