Corrugated beam guardrail - Side guardrail and central divider guardrail
Waveform guardrail is also known as waveform plate guardrail, anti-collision guardrail, W plate guardrail, road guardrail. It is the most widely used safety guardrail for highway Bridges at home and abroad.Corrugated guardrail components are: guardrail plate, column, column cap, block/bracket, conne

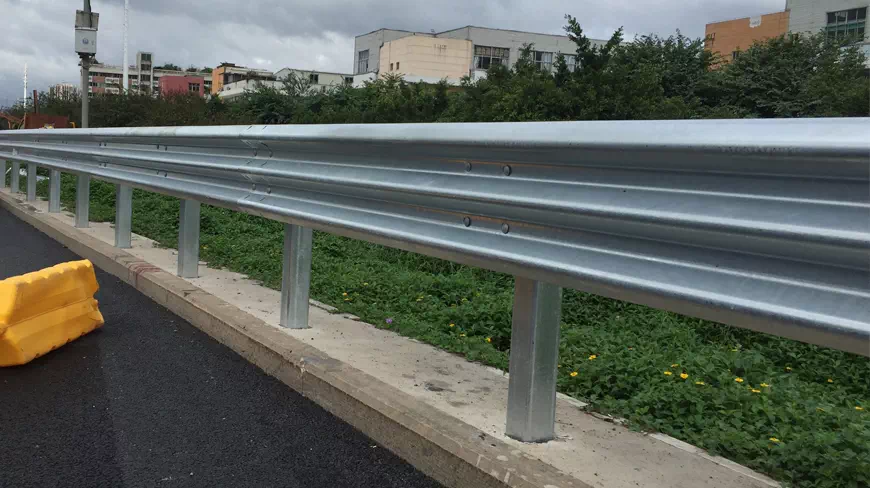

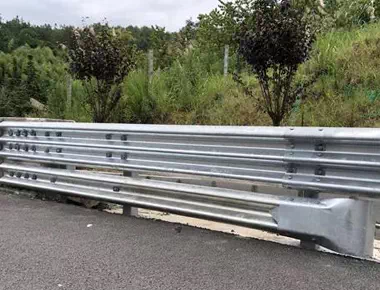

Waveform guardrail is also known as waveform plate guardrail, anti-collision guardrail, W plate guardrail, road guardrail. It is the most widely used safety guardrail for highway Bridges at home and abroad.
Corrugated guardrail components are: guardrail plate, column, column cap, block/bracket, connection bolt, splicing bolt, beam gasket, end.
Classification of waveform guardrail: waveform beam guardrail is generally classified according to the location and anti-collision grade. According to the location, it can be divided into roadside guardrail and central divider guardrail. According to the anti-collision grade can be divided into A and S class. S-class guardrail is A strengthened type, which is suitable for the use of particularly dangerous road sections on the side of the road, and A class is used for special highways.
Material: High quality steel plate by anticorrosive treatment.
Manufacturing process: high quality steel plate by pickling, stamping into double wave or three wave plate, after hot dip galvanized or hot dip galvanized spray treatment.
Product features: good anti-corrosion performance, anti-aging, beautiful and easy to install.
Uses: industrial, agricultural, municipal, transportation and other industries fence, decoration, protection facilities.

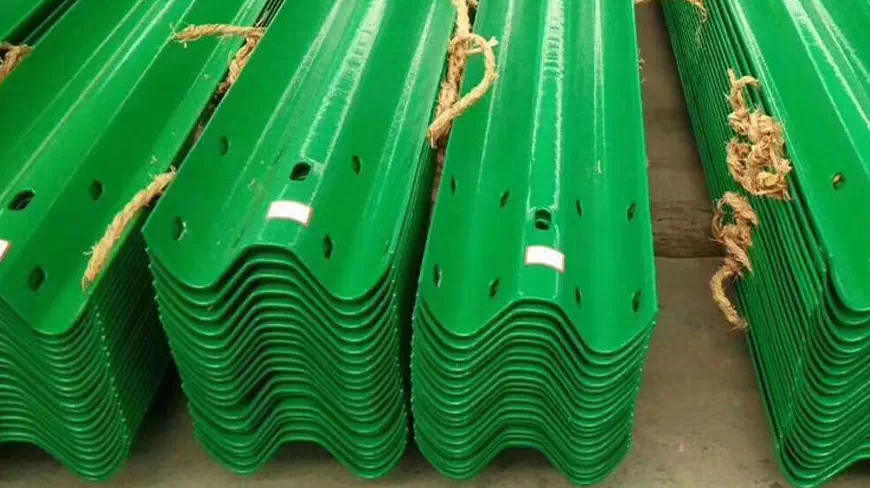

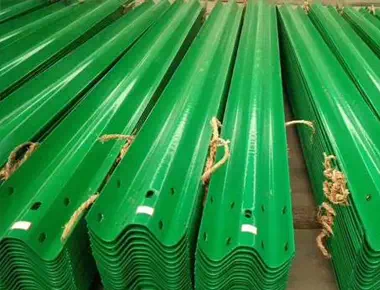

Component specifications: (1) Corrugated plate: 4320*310/506*85* Thickness (2.5/2.75/2.85/3/3.85/4)mm
(2) Column: diameter (114/140)* wall thickness (4/4.5)* length mm
(3) Column cap: 114 column adaptation and 140 column adaptation
(4) blocking block: 196*178*200* thickness (4/4.5) mm
(5) Bracket: 70*300* thickness (4/4.5) mm
(6) Bolt: M16*170, M16*150, M16*42, M16*35
(7) End: R1608 thickness, R250* thickness
Corrugated guardrail material: Q235, high quality low carbon steel

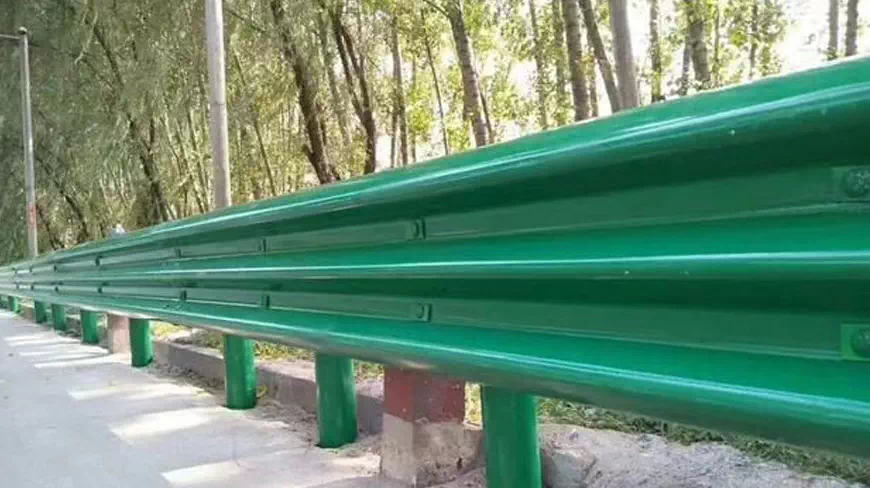

Finish: Hot dip zinc, silver white. Galvanized + spray plastic, blue green white yellow and other colors.
Corrugated guardrail surface treatment: hot dip galvanizing, cold galvanizing spray, dip plastic, epoxy octyl
