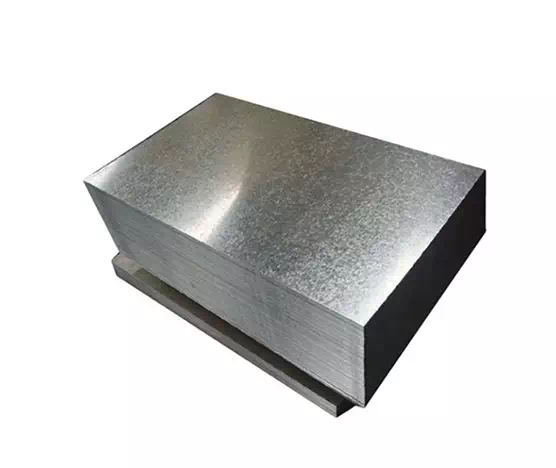

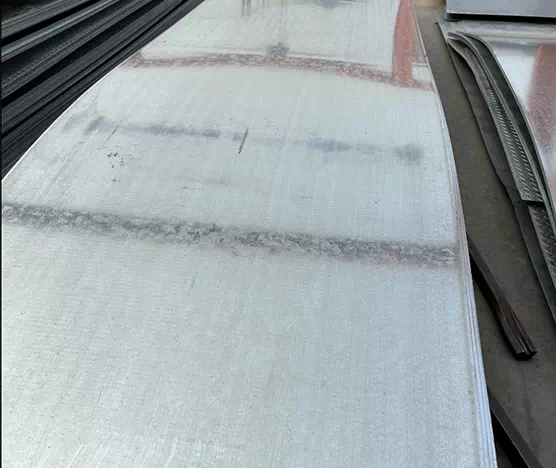

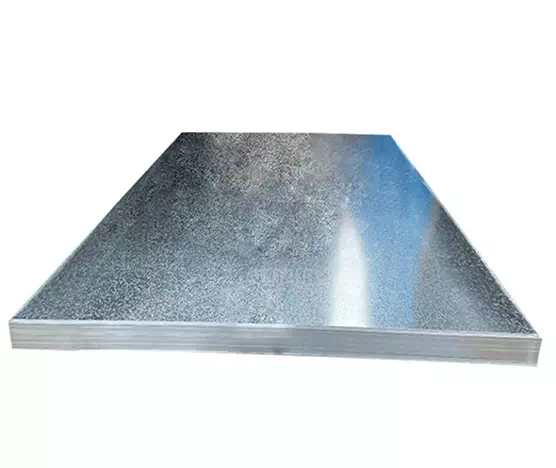

Z275 Hot Dipped Galvanized Steel Plate Zhishang Steel Galvanized Sheet Plate

Z275 indicates that the total weight of the double-sided galvanized coating is 275 grams per square meter (137.5 grams per square meter on one side), which belongs to the hot-dip galvanizing process (SGCC).

Inquiry WhatsApp Email
Tel +86-531-88752665

Zhishang Steel Galvanized Sheet Plate description


I. Core Characteristics of Z275 Hot-Dip Galvanized Steel Sheet

    1. Coating definition and process

      Z275 indicates that the total weight of the double-sided galvanized coating is 275 grams per square meter (137.5 grams per square meter on one side), which belongs to the hot-dip galvanizing process (SGCC).

.     The coating thickness is approximately 19.26 microns. By immersing the steel plate in molten zinc liquid (about 460°C), a dense zinc-iron alloy layer is formed, which has excellent corrosion resistance and mechanical properties.

    2. Technical parameters

      Material: The base material is mostly low-carbon steel (such as S420GD high-strength steel), with a yield strength of over 420MPa, suitable for load-bearing structures.

      Specification: Thickness range 0.3-3.0mm, width 700-1830mm. Customized processing is supported (such as uncoiling, slitting, etc.).

      Surface treatment: Zinc-free flower, small zinc flower or anti-fingerprint treatment are available to meet the anti-rust and aesthetic requirements of different scenarios.

    3. Performance advantages

      Corrosion resistance: It can last up to 50 years in Marine environments and over 20 years in industrial environments, far exceeding the lifespan of ordinary galvanized steel plates (such as Z100).

      Processability: Suitable for bending, stamping, welding and other processes. Especially when combined with concrete, the closed die design can enhance the structural stability.




Ii. Main Application Fields

    Z275 galvanized steel plates are widely used in the following industries:

    1. Field of architecture

      Steel structure workshops, roofs, ventilation ducts, roller shutters, etc. (accounting for 35% of market demand).

      Profiled steel sheets (such as YXB65-185-555B) are used for load-bearing floor slabs or walls, and are combined with high-strength steel to enhance building safety.

    2. Automobiles and Transportation

      Body parts, containers, and structural components of rail vehicles, taking advantage of their lightweight and corrosion-resistant properties.

    3. Household appliances and industrial equipment

      Air conditioner casings, washing machine panels, elevator components, etc., have both anti-rust and aesthetic requirements.

    4. Others: Chemical equipment, solar brackets, agricultural machinery, etc.

Iii. Product Features of Zhishang Steel Galvanized Steel Sheets

    Zhishang Steel provides the following services related to galvanized steel sheets:

    1. Material diversity: Supports various base materials such as Q235B, DX51D, and SECC, covering cold rolling, hot rolling, and aluminized zinc coating processes.

    2. Processing Services: We offer customized processing services such as bending, punching, and slitting to meet the demands of the construction and industrial sectors.

    3. Standard Certification: Complies with international standards such as ASTM, JIS, and national standards to ensure product quality.

Z275 Hot Dipped Galvanized Steel Plate Parameter


Product name

Galvanized steel sheet/coils

Standard

JIS G3302 / ASTM A653M / EN10327 / DIN17162

Grade

SGCC/DC51D/DX51D/DX52D/SGSS/SGCD1/SGCD2/SGCD3 SGCC,etc

Thickness

0.12-3.5 mm

Width

600-1250mm(usual size:914mm,1000mm,1200mm,1219mm,1250mm,1220mm)

Spangle

Regular spangle,Minimum spangle, Zero spangle, Big spangle

Zinc coating

30~600G/M2

Hardness

Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95)

Coil ID

508mm, 610mm

Packing

Standard seaworthy export packing: waterproof paper+steel trippacked+wooden case seaworthy package

Delivery

Within 7-15days

Standard Seaworthy Export Packing

Dust-proof kraft sheet, Iron packing, Angle protective ,Packing belt,Wood pallet


QA


Q1. Where is your factory ?
A1: Our company’s processing center is located in Shangdong, China.Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.We can provide a wide range of personalized services according to the customers’ needs.
Q2. What are your company's main products ?
A2: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.
Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
