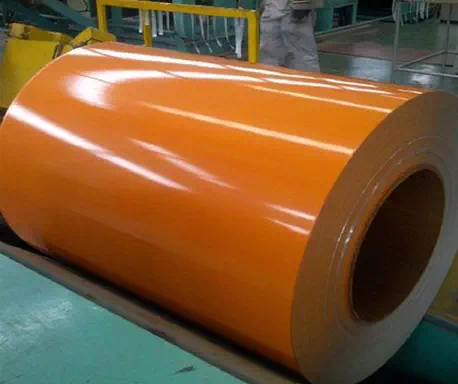

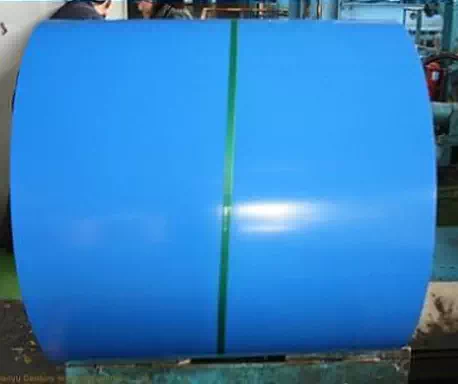

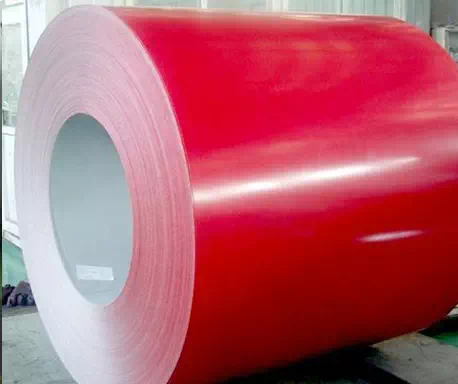

〣Powder color coating coil

Powder color coating coil with powder coating instead of paint as coating, the use of international advanced technology to achieve a coating molding. Automatic production line, green clean production, equipment, coating materials have a number of national invention patents, completely innovated the traditional color coating production mode, changed the original process paint pollution, unsafe operation, high energy consumption of the drawbacks, powder coating raw materials are based on a variety of high-performance new materials, does not contain any solvent, zero VOC, with energy saving, safety and environmental protection, Excellent adhesion, weather resistance, corrosion resistance and so on.

The production unit is an automatic strip powder color coating unit, which has the functions of pre-treatment, one coating, one drying, cold coating and so on. The designed production speed is 120m/min, the width of Z plate is 1250mm, and the thickness of Z plate is 1.5mm. The normal thickness of the coating is 45μm/25μm. By adjusting the powder and coating parameters, the thickness can reach 120μm. Only one spraying and one curing can be completed, which greatly reduces the operating cost.

〣Powder color coating coil type of paint:

PE: Good adhesion, easy to process

HDP: Excellent weather resistance and chemical resistance

PVDF: Corrosion resistance, color retention, chemical resistance is very good

〣Market direction:

Metal maintenance plate manufacturing: industrial buildings, high-speed railway stations, smelters, thermal power plants, animal husbandry and other industries construction coil.

Home appliance plate manufacturing: refrigerator, washing machine, air conditioning, freezer, microwave oven, etc.

Steel door industry: steel fire doors, steel fire doors, steel entry safety doors, etc.

Metal decoration plate manufacturing: public construction of metal inside and outside curtain wall, interior decoration, etc.

Metal cabinet industry plate manufacturing: automatic sales containers, electric cabinets, filing cabinets, etc.

Elevator industry plate manufacturing: door, car plate, etc.

Powder color coating plate pretreatment using degreasing, washing, in the substrate surface of oil, impurities at the same time, can ensure the integrity of zinc layer, effectively prolong the life of the color coating plate, process for powder electrostatic coating, powder for the rapid curing thin coating powder developed for the coil, coating equipment are all imported from abroad, can ensure the uniformity of film thickness.

Observed under a high power microscope, the surface of the paint coil has many holes, while the surface of the powder color coated coil is smooth and smooth. This prevents the longitudinal penetration of water molecules, oxygen, and corrosive substances in the air from the coating.

Powder color coating coil coating color is rich and varied. With matte plane, highlight plane, sand grain, metal scintillation sand grain, chameleon, wood grain and other effects, at the same time can achieve high temperature resistance, antibacterial, flame retardant, self-cleaning and other multiple functions.

〣Specification
